Solar Panels & Charge Controllers
This post may contain affiliate links, meaning I get a commission if you decide to make a purchase through my links. There is no additional cost to you. See Affiliate Disclosure
My camping Google Docs
Ground solar panels
– add cables and an MPPT solar controller

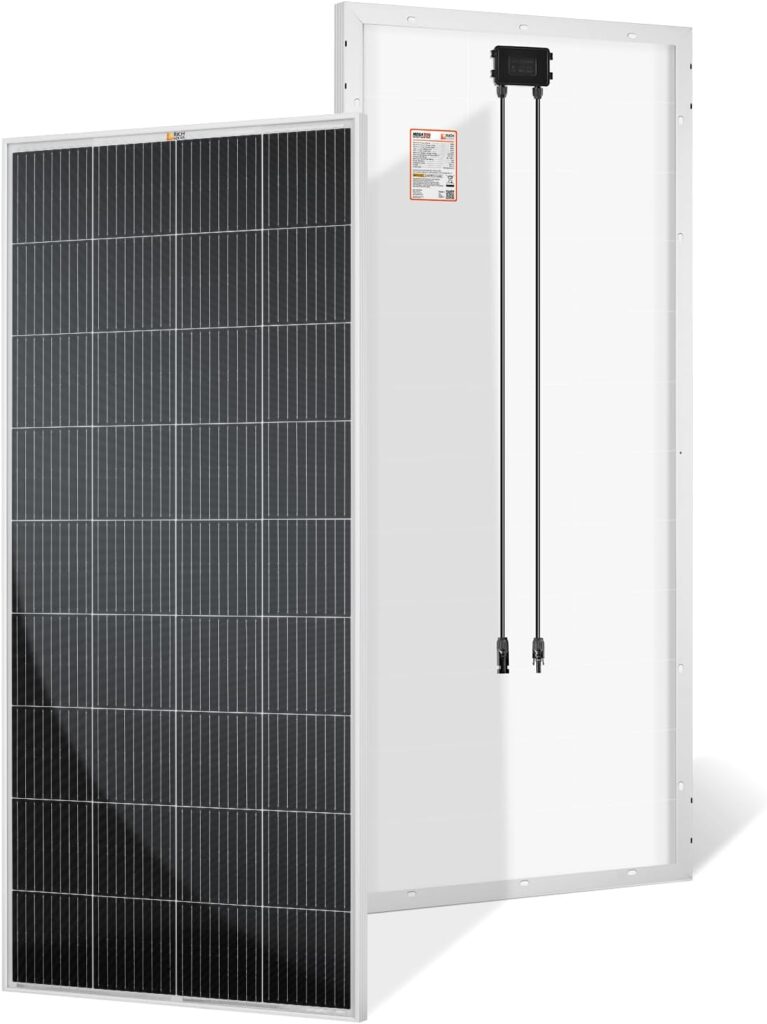

EBL 200 watt panel

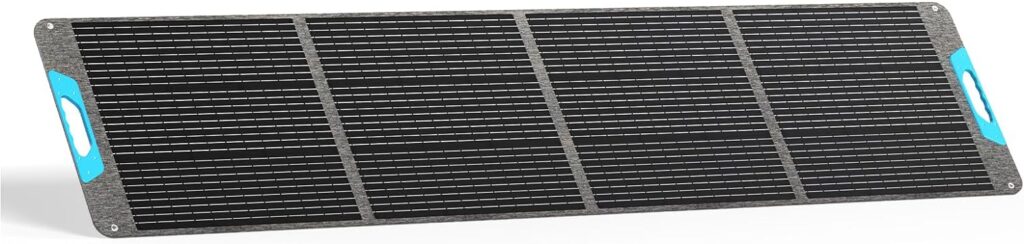

Renogy 200 watt panel

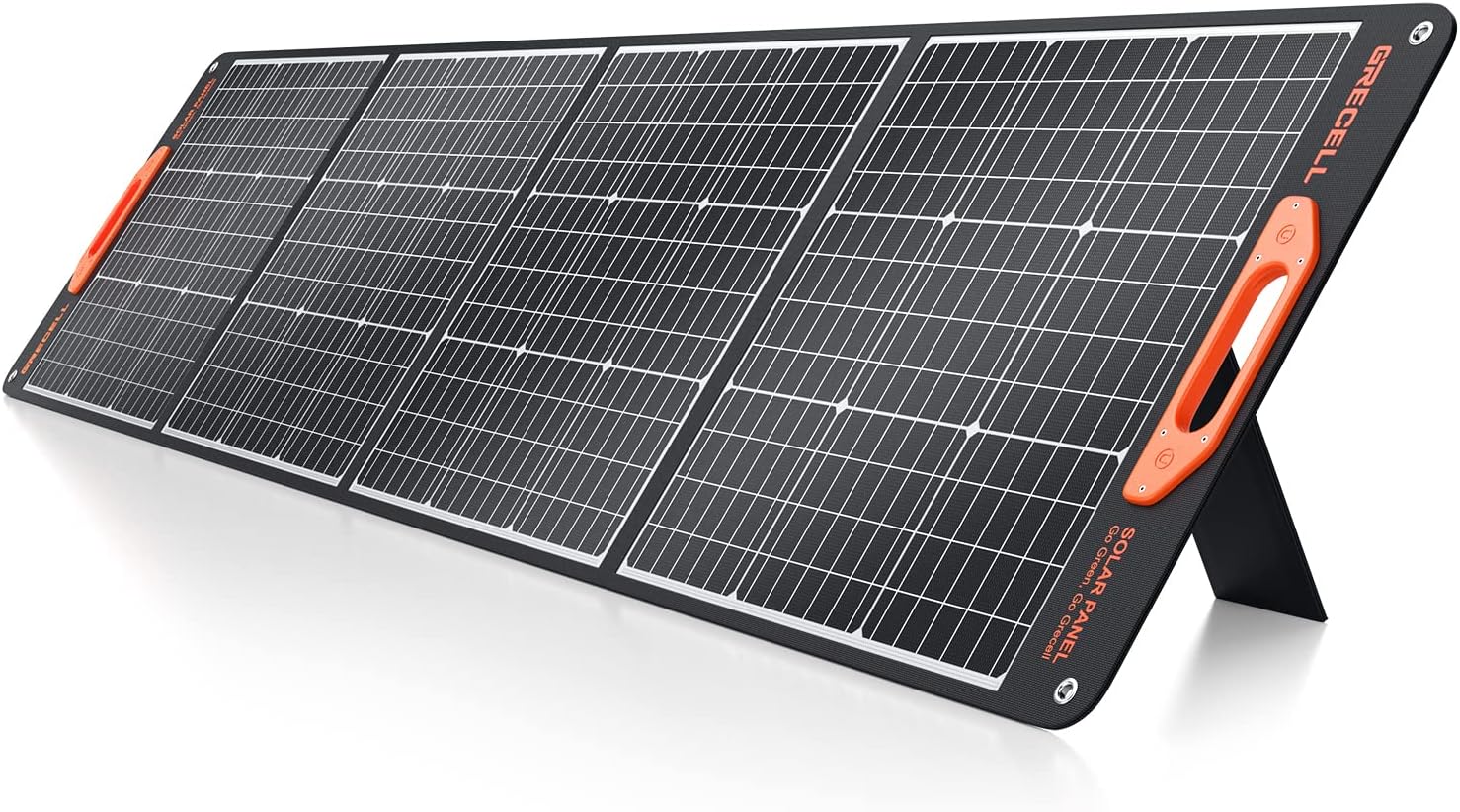

GRECELL 200 watt panel
EBL 100 watt panel
– not recommended if your trailer has a 12V fridge that uses a lot of power. 200W or more is best.
Items to connect the panels and controller to the battery:
Note: Connecting directly to the battery is better than using the trailer’s side solar port.
SAE connector method

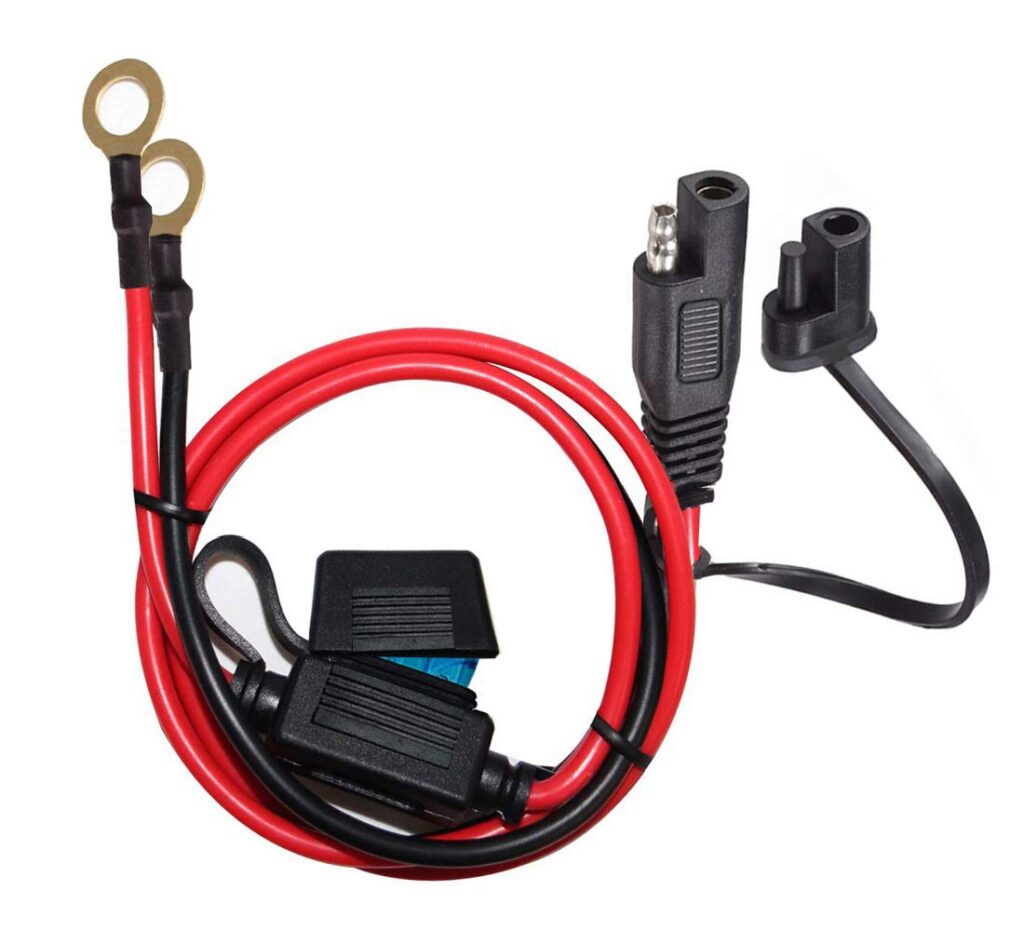

SAE to O-ring adapter

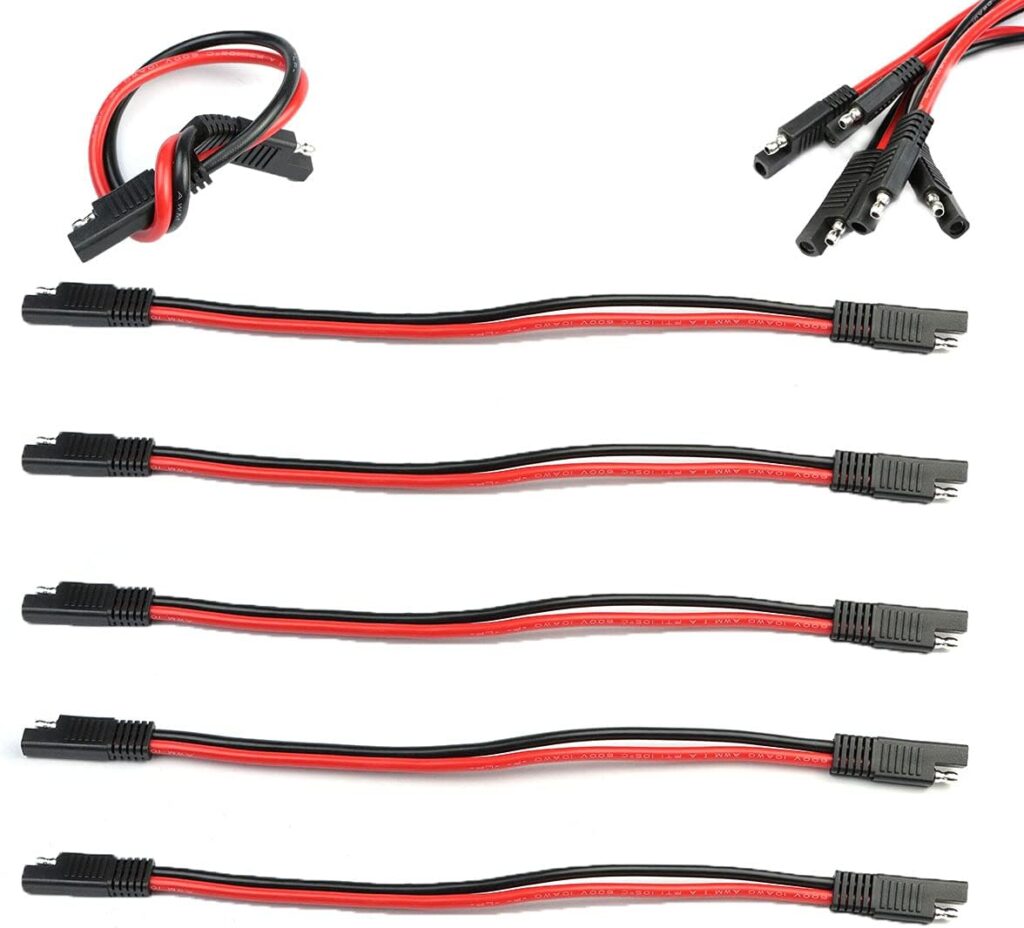

SAE connectors – 5 pack
– cut and connect to the solar controller
SAE Polarity adapters
– If you have to reverse the polarity or want to connect two SAE cables together.

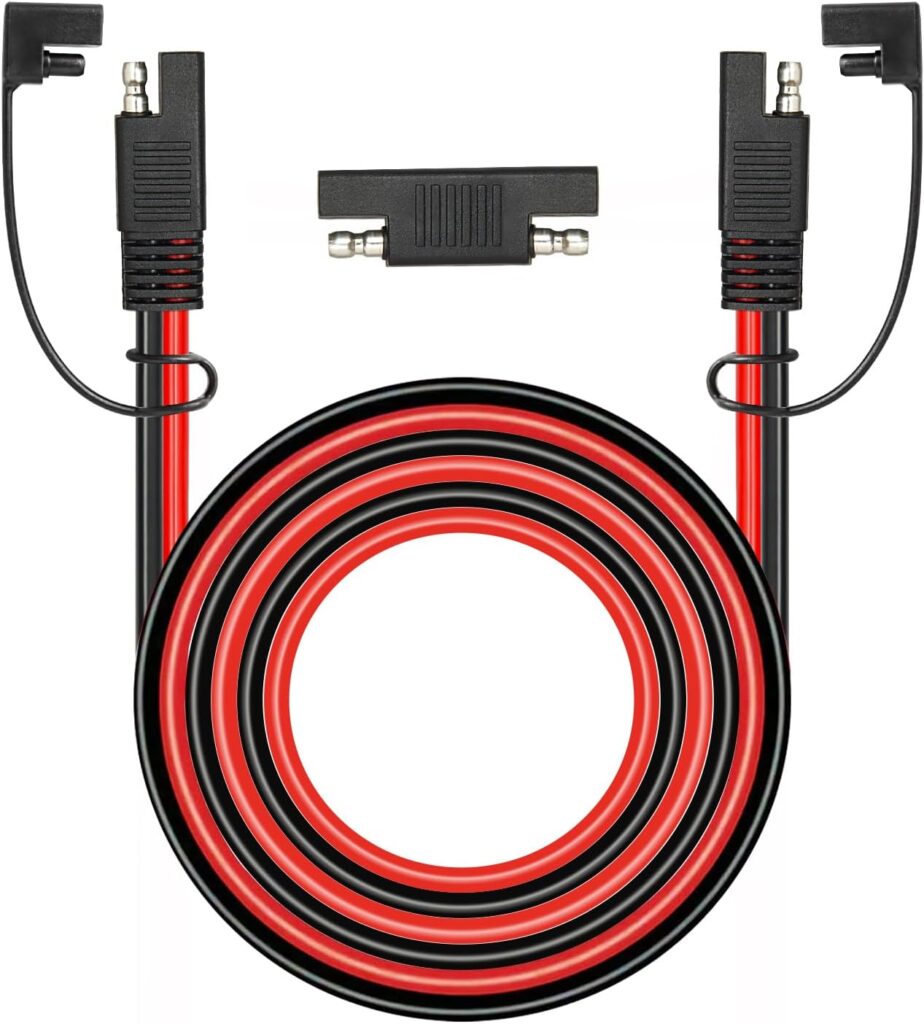

SAE cable – 10 ft

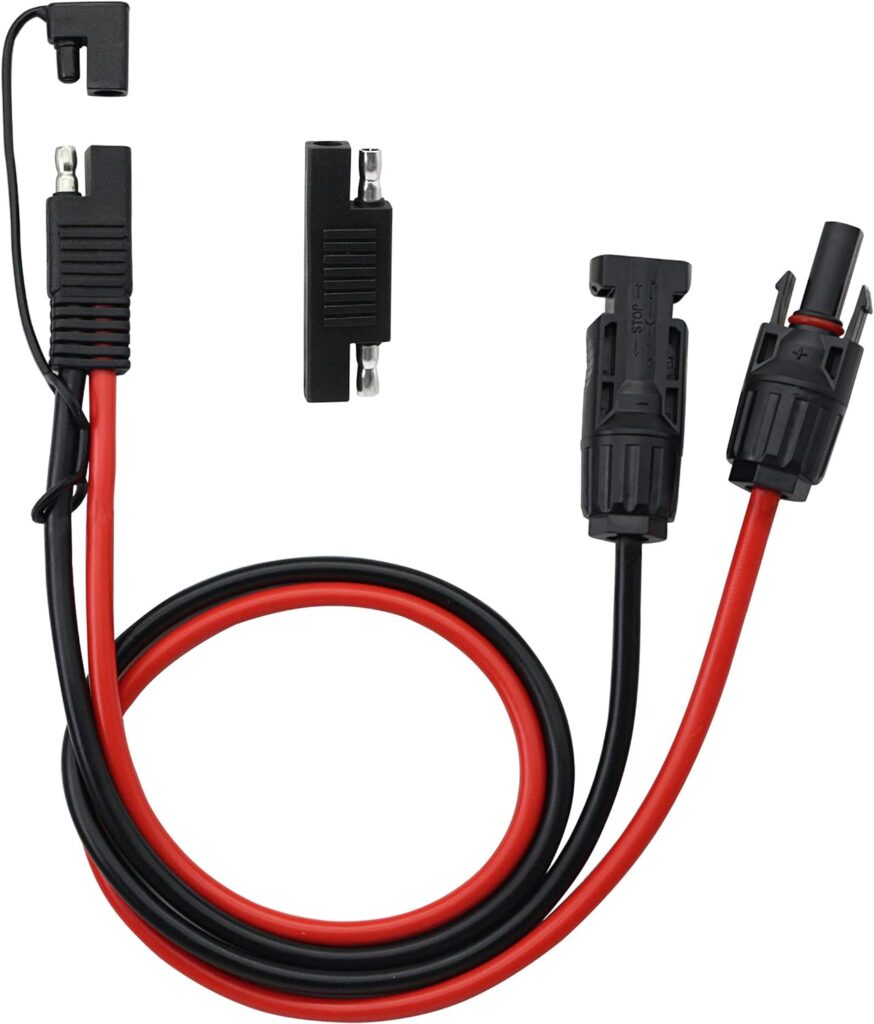

SAE to MC4 adapter
– connects SAE cable to solar panel
MC4 connector method

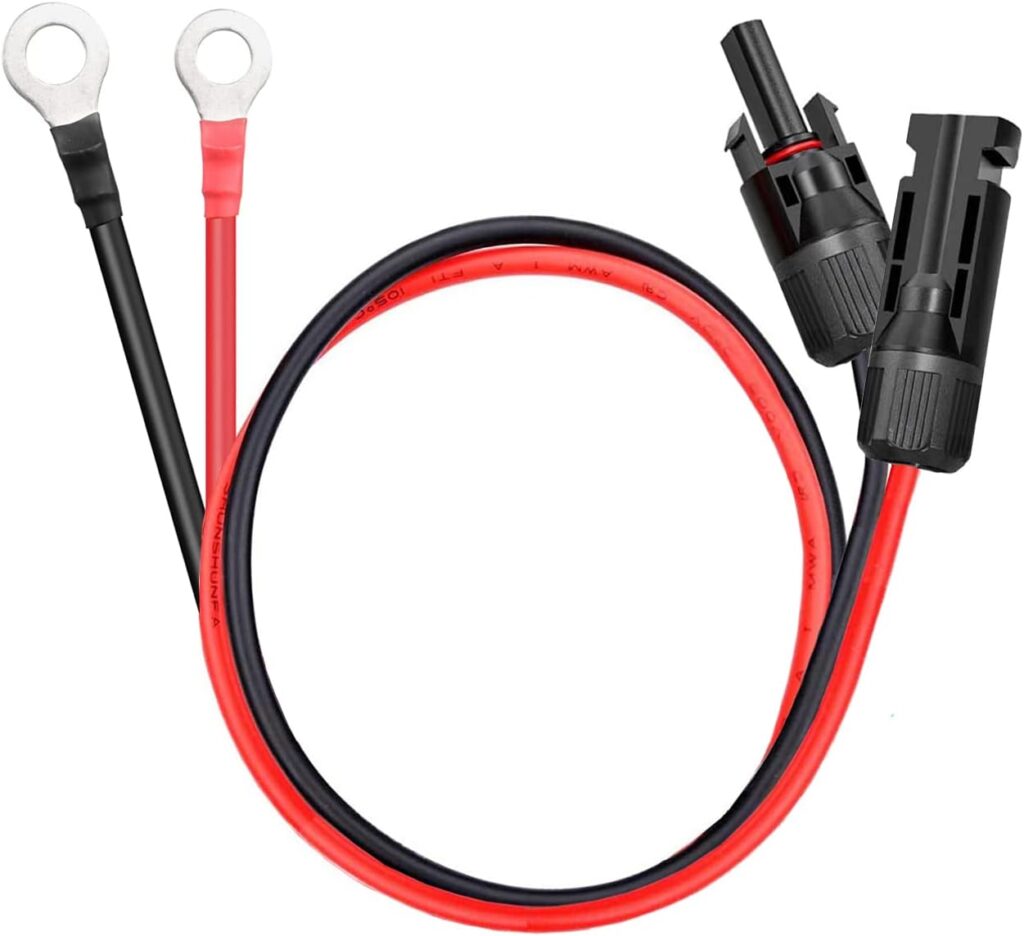

MC4 to O-ring adapter
– 2 ft
MC4 cables for solar controller
– cut in the middle

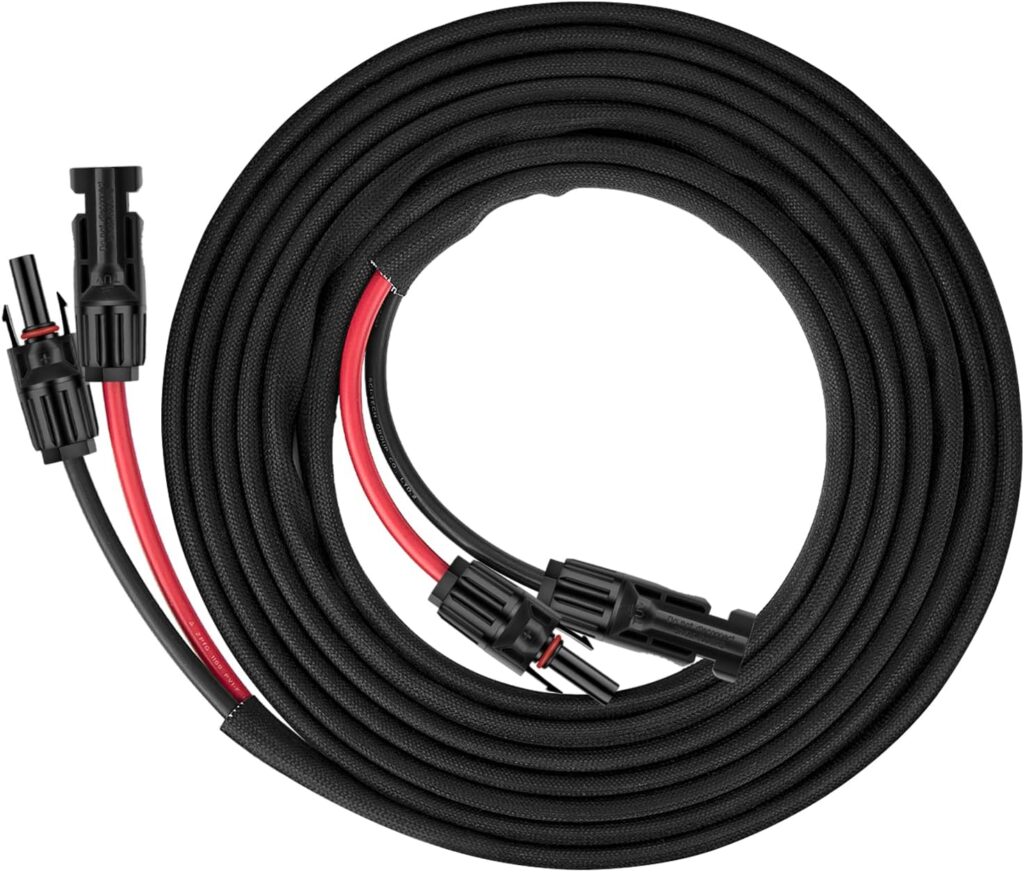

MC4 cable – 20 ft
If installing the solar controller inside the trailer, check out the Battery/Solar Wiring Parts page.
Solar charge controllers

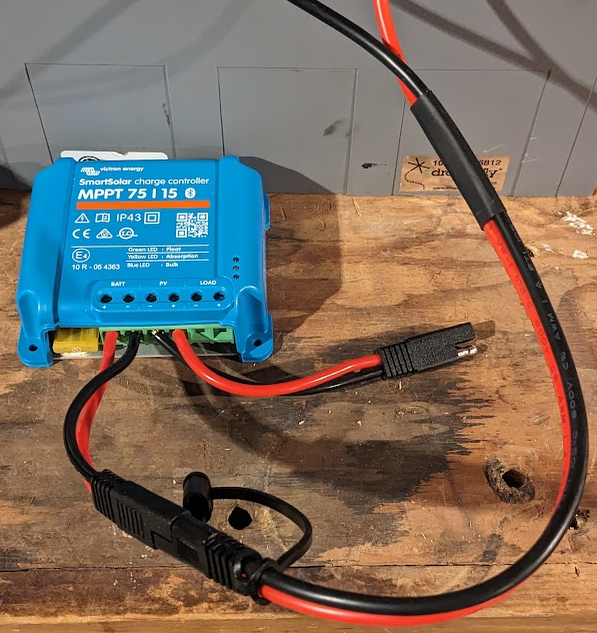

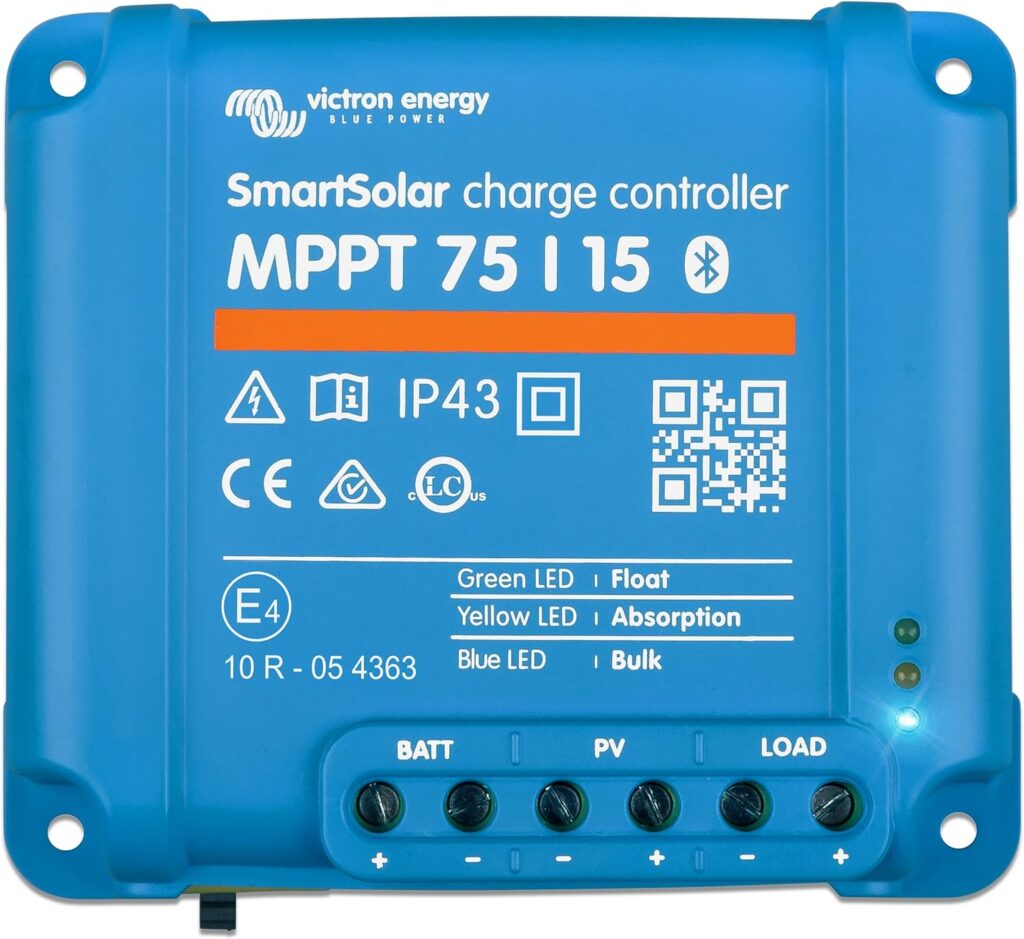

Victron SmartSolar
15A / 75V MPPT
Handles up to 243 watts of solar.

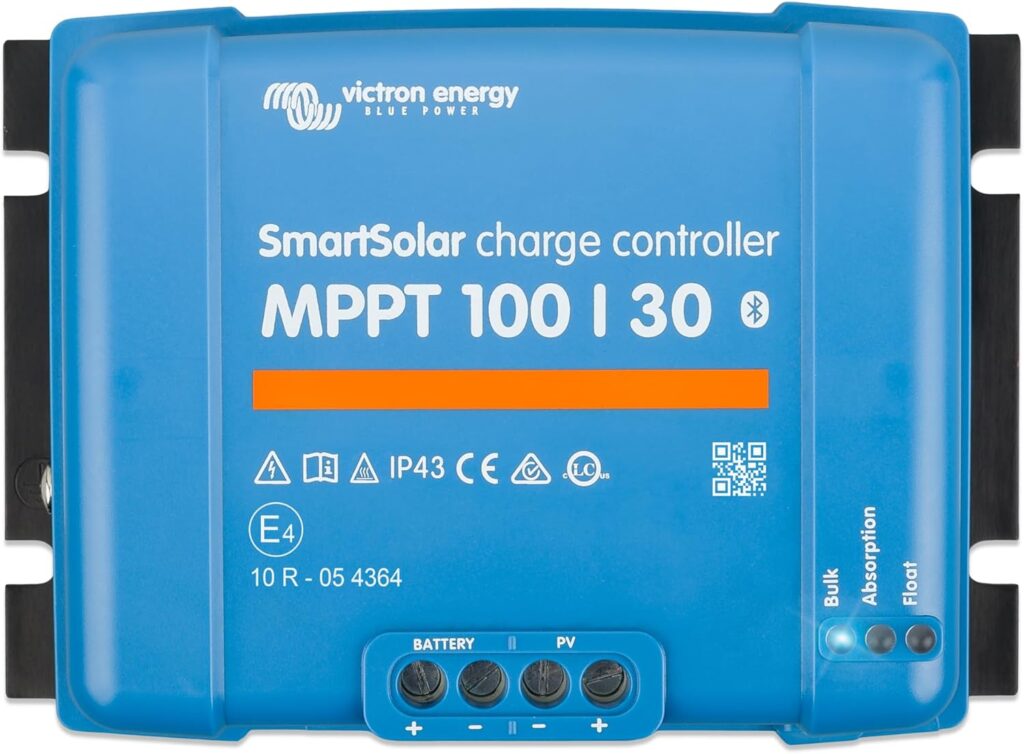

Victron SmartSolar
30A / 100V MPPT
Handles up to 480 watts of solar

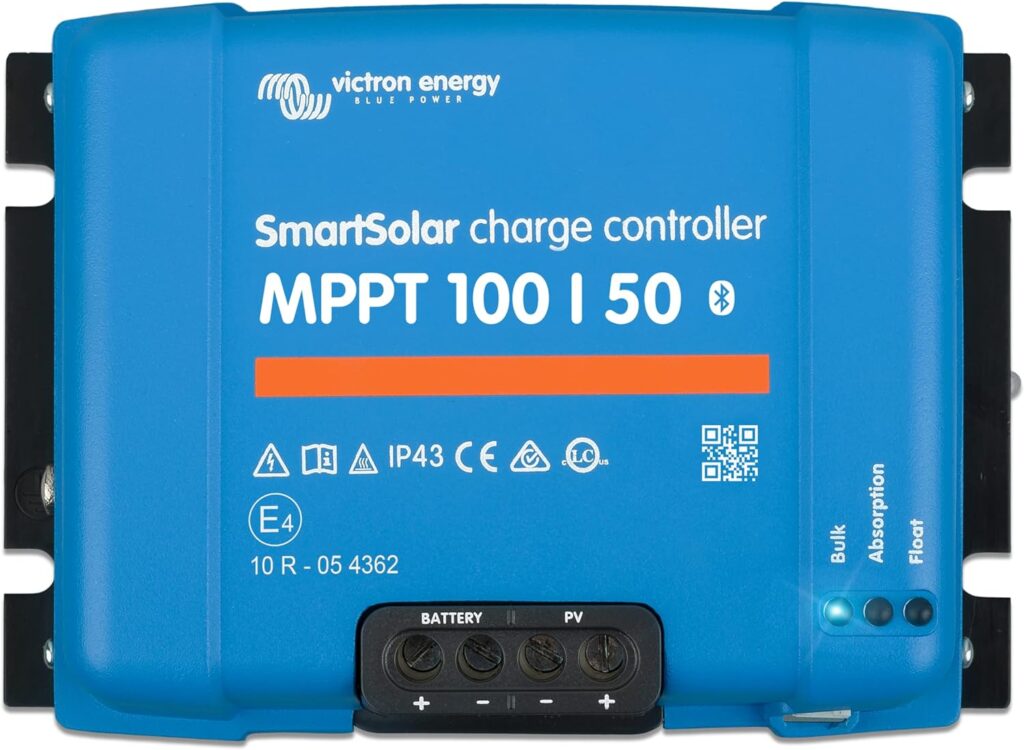

Victron SmartSolar
50A / 100V MPPT
Handles up to 800 watts of solar
12V roof solar panels
– If adding another solar panel/s to an existing roof solar setup, you don’t need to buy a solar controller since the trailer should already have one inside on a wall.
– Don’t bother with 100 watt panels on the trailer roof. Labor is the largest cost.
– If your trailer already has a factory solar panel, it is most likely 12V. Purchase another 12V panel (matching the wattage as close as possible) and a parallel splitter/adapter. Most are 175-200 watt from the factory.

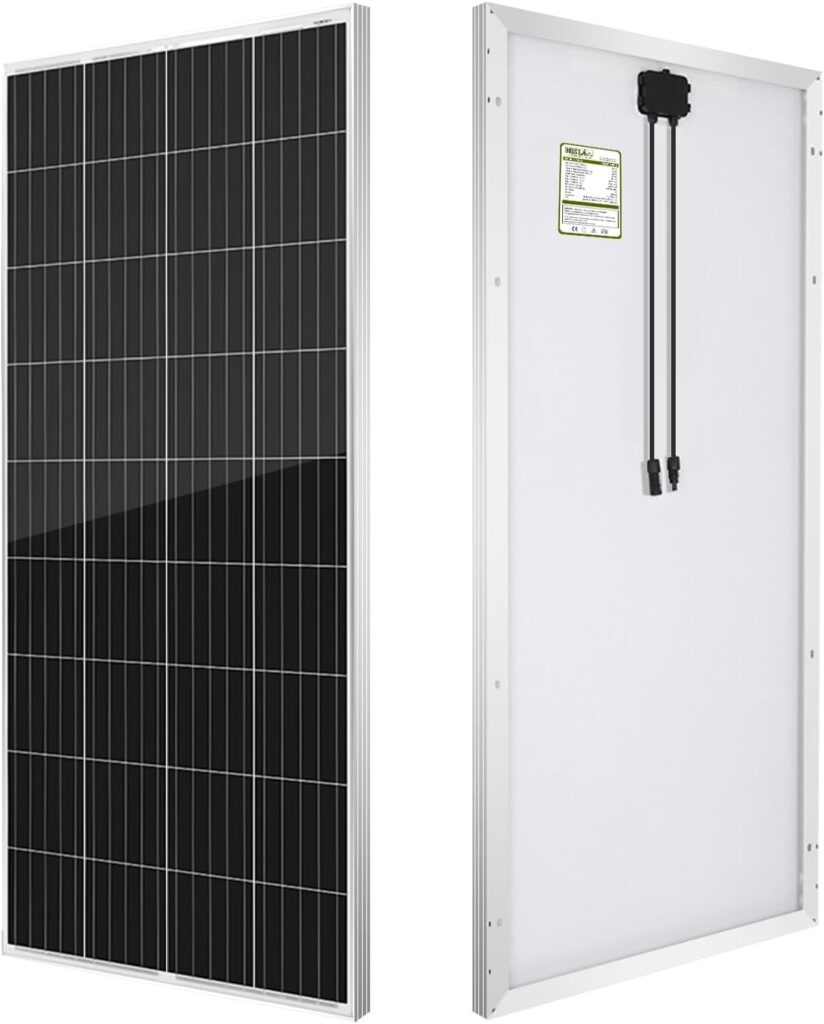

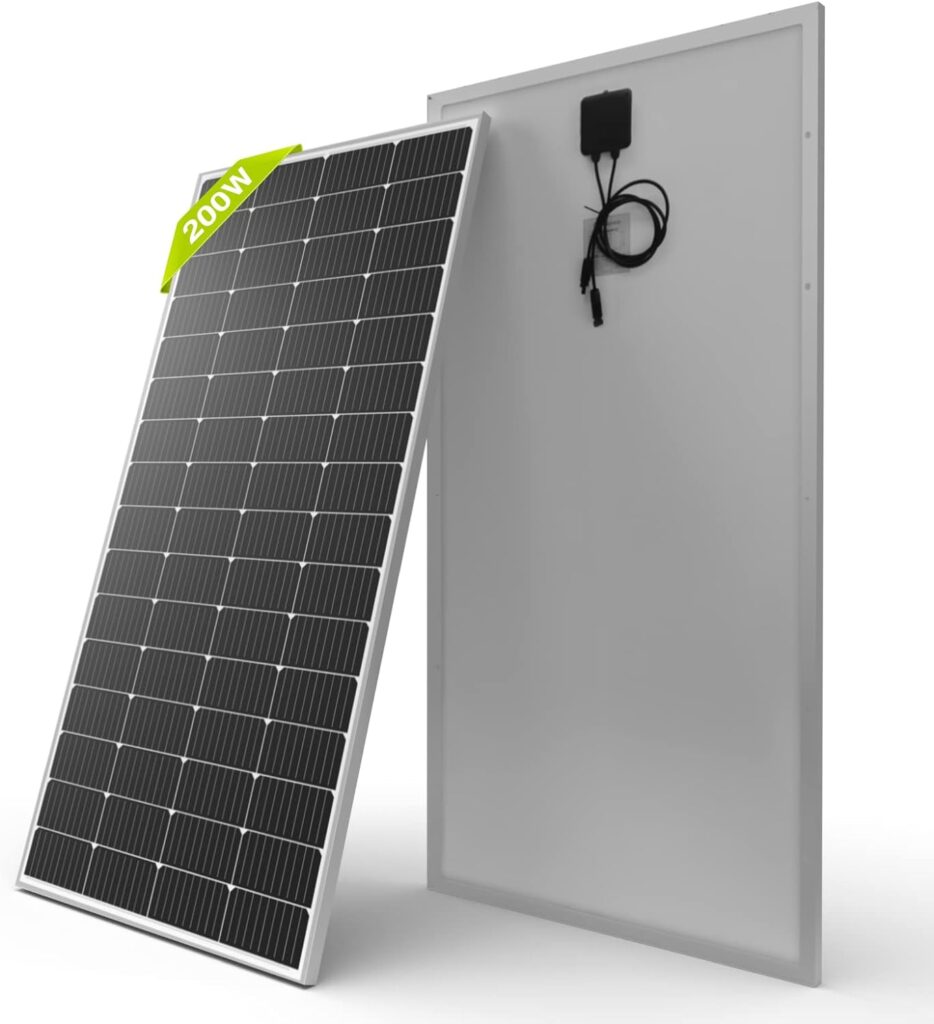

Newpowa 200 watt
Rich Solar 200 watt
HQST 190 watt

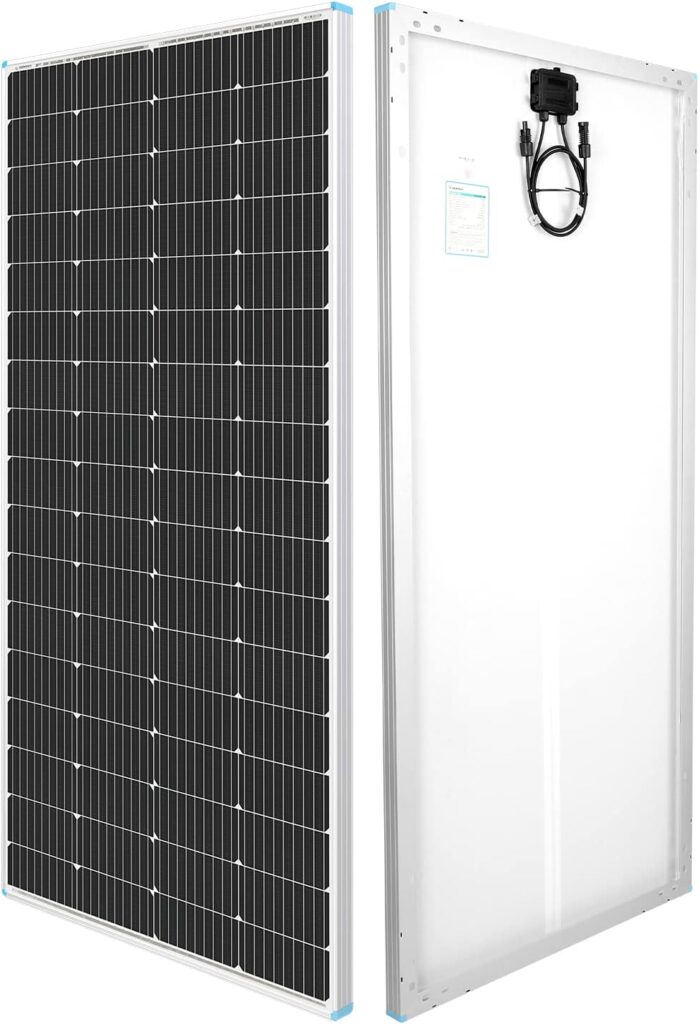

Renogy 200 watt
Roof panel accessories
Note: If there isn’t an inline fuse, you’ll want to put a circuit breaker on the positive cable between the solar panel and solar controller.

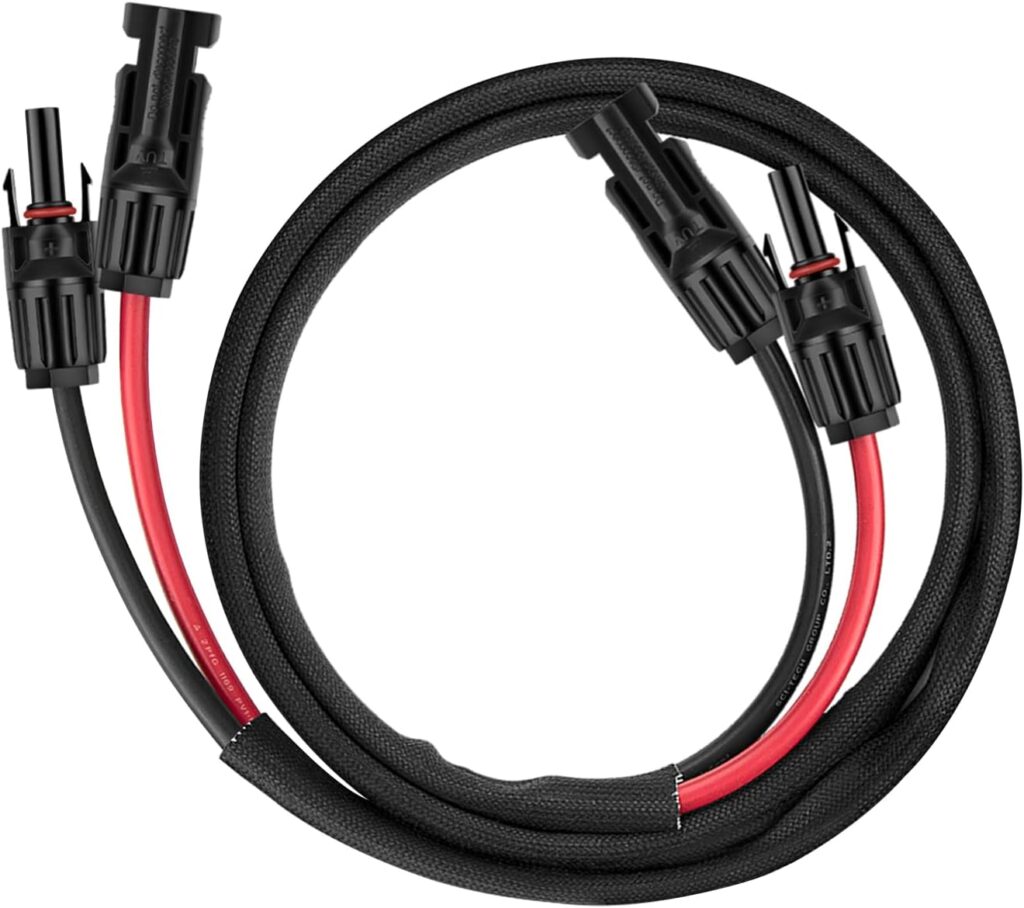

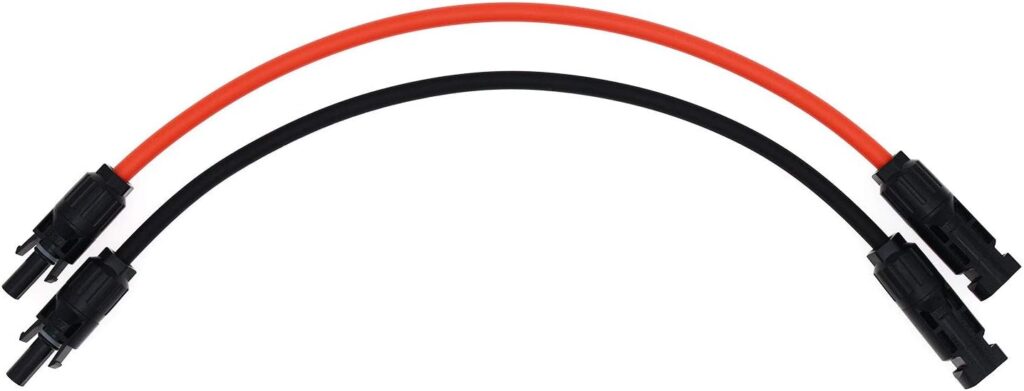

MC4 extension cables
– 3 ft 10 ga

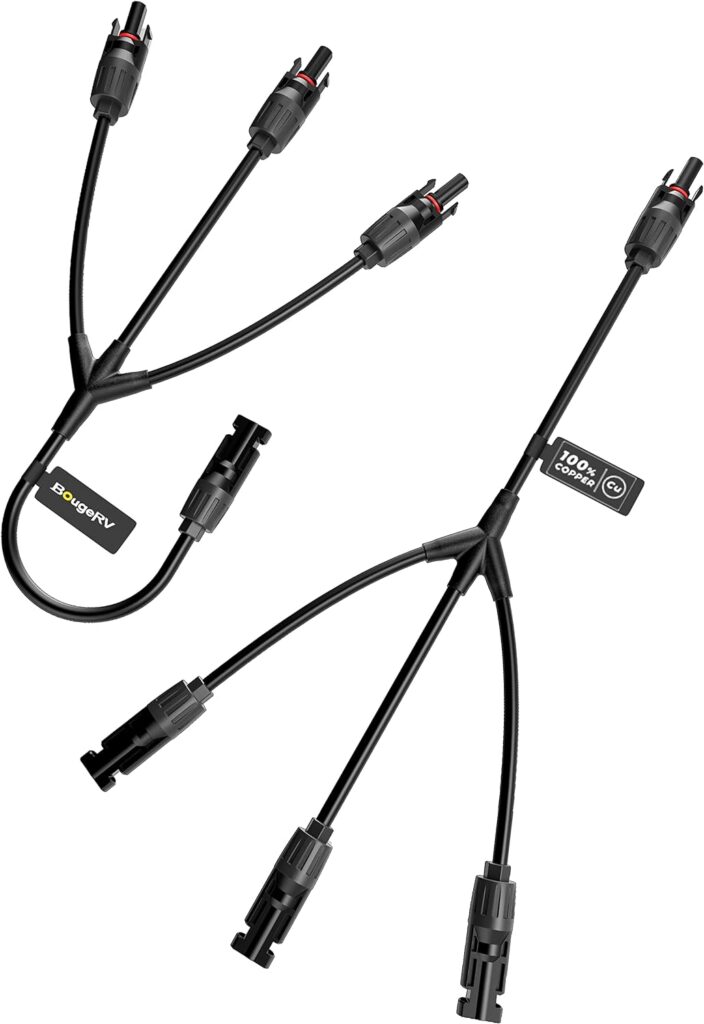

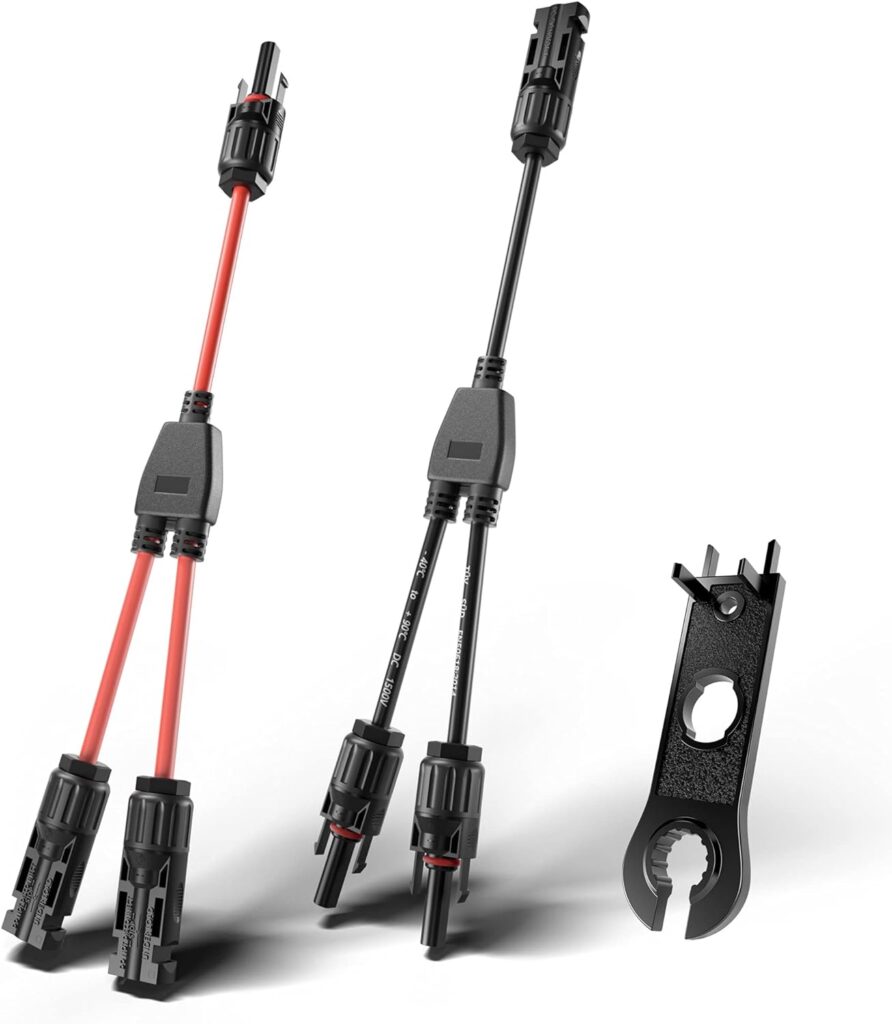

MC4 parallel splitter cable
– connect two panels in parallel
MC4 parallel splitter cable
– connect three panels in parallel

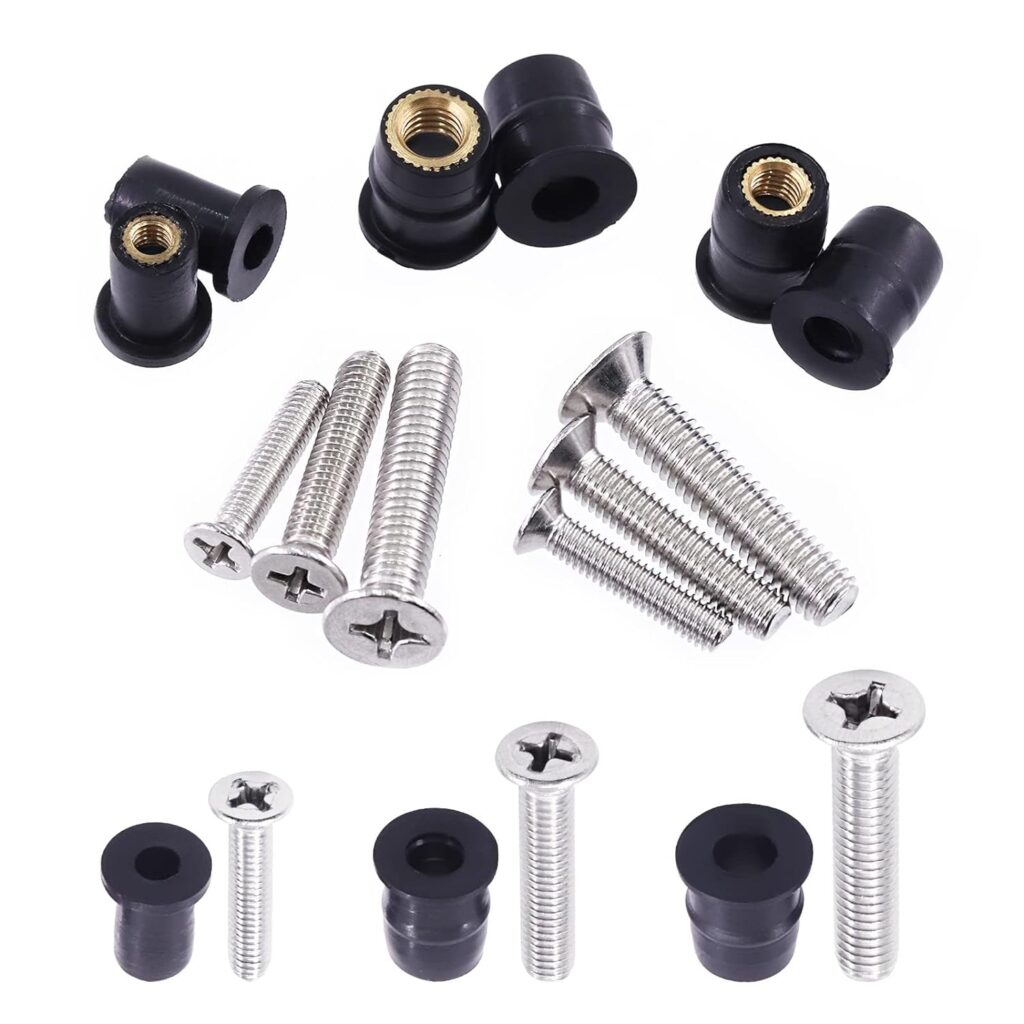

Well nuts
– mount panel brackets to the roof

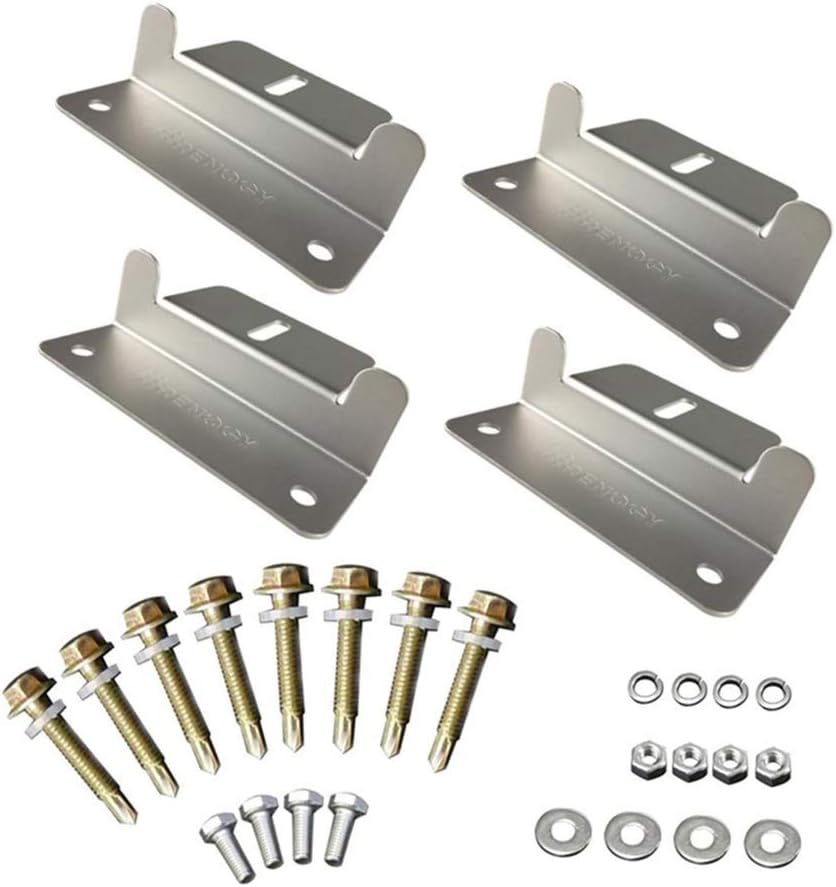

Panel brackets
– 4 panels

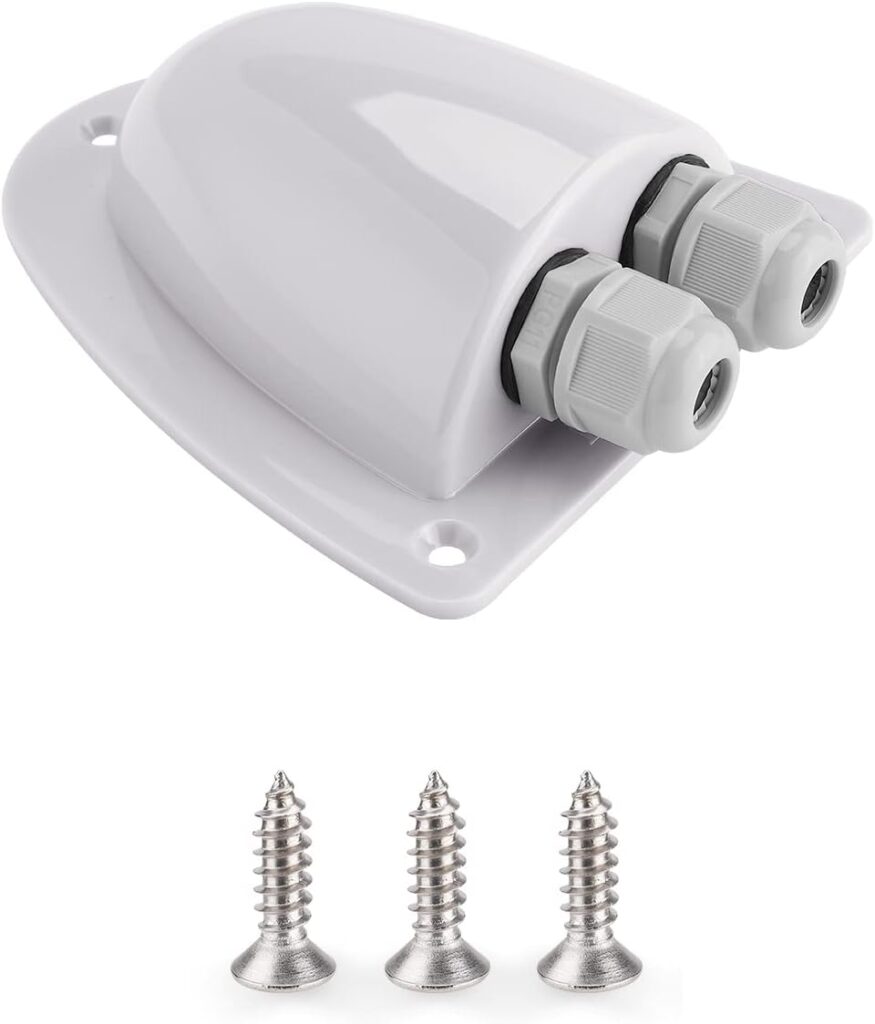

Roof wiring entry gland
– if your trailer doesn’t already have a solar panel.
