120v Power Inlet Receptacle Parts & Install
This post may contain affiliate links, meaning I get a commission if you decide to make a purchase through my links. There is no additional cost to you. See Affiliate Disclosure
My camping Google Docs

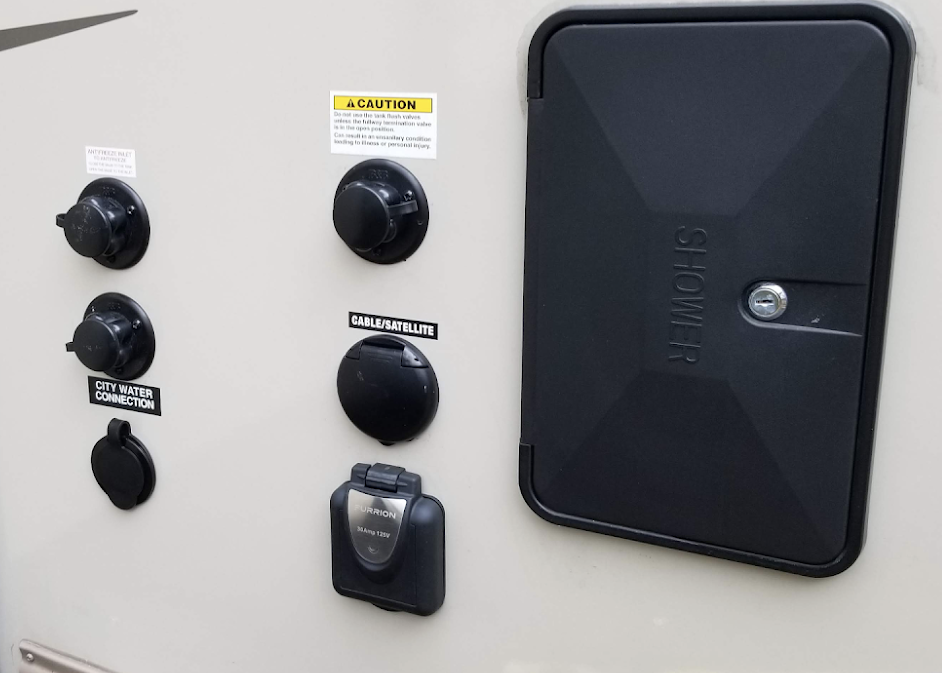

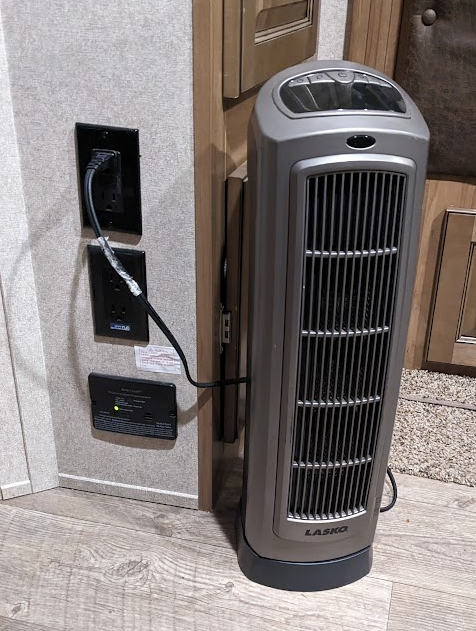

A power inlet is great for reducing the strain on the trailer’s electrical system. I use it to power a space heater when camping in cool temps. You could also use it to power other high wattage items like a hair dryer, crock pot, air fryer, etc.
NOTE: If you don’t have an interior wall to install an electrical box, you can use an inlet like this. They are good for slide and cabinets on exterior walls.

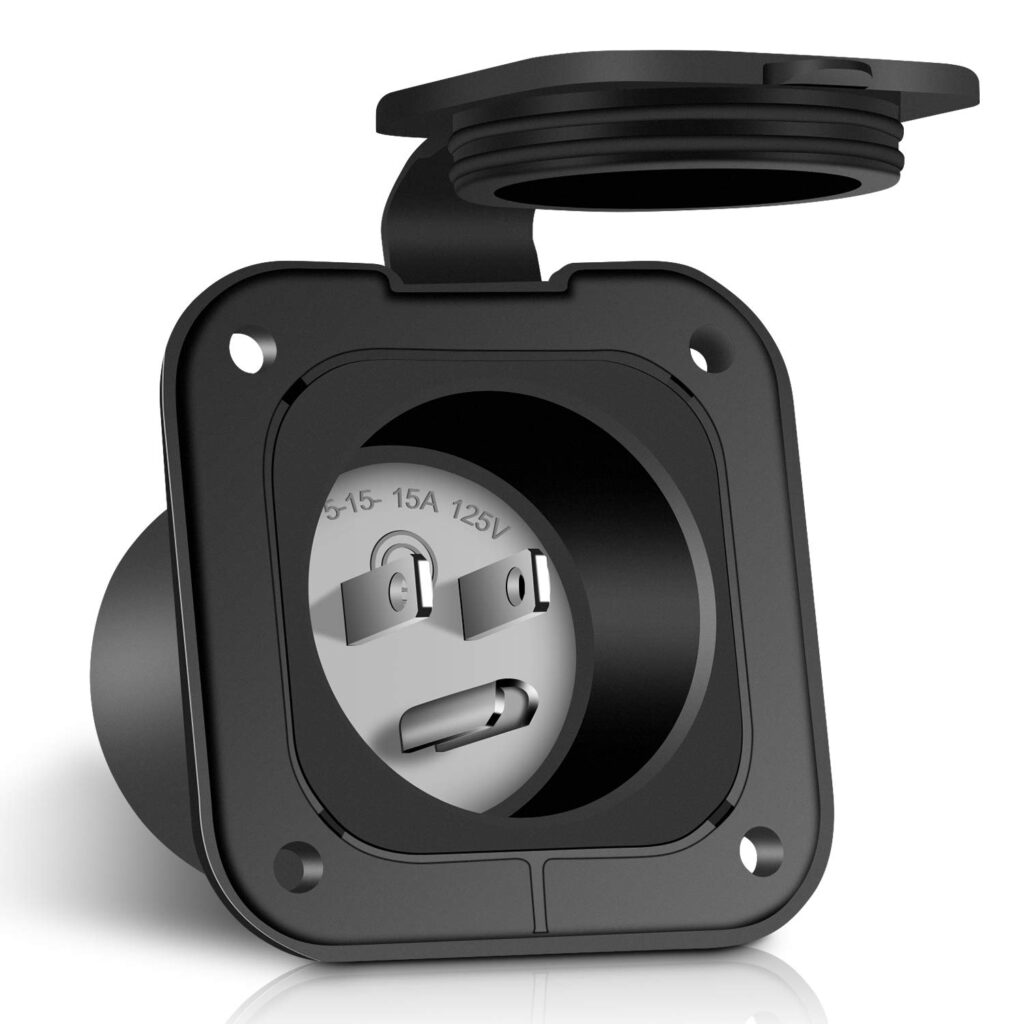

15 amp inlet receptacle
– requires 2″ hole saw

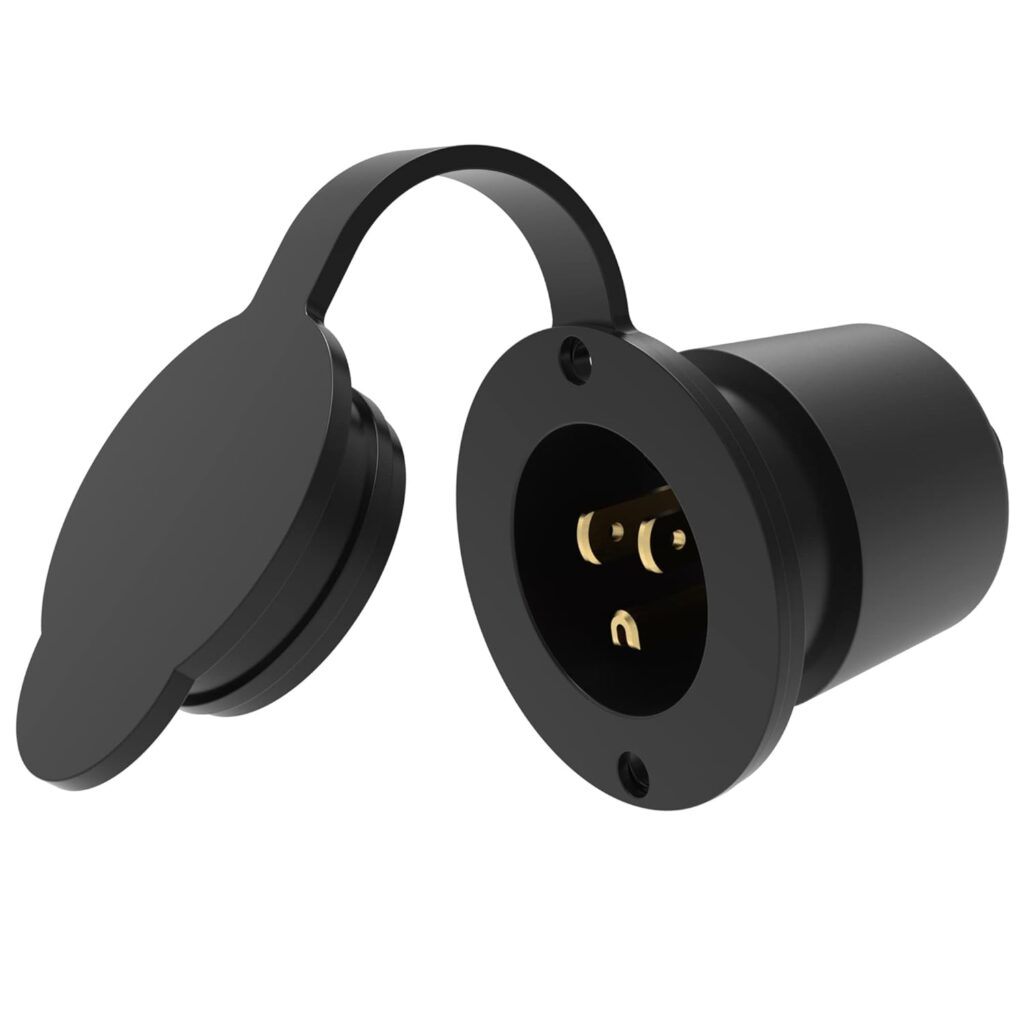

15 amp inlet receptacle
– requires 1-3/4″ hole saw

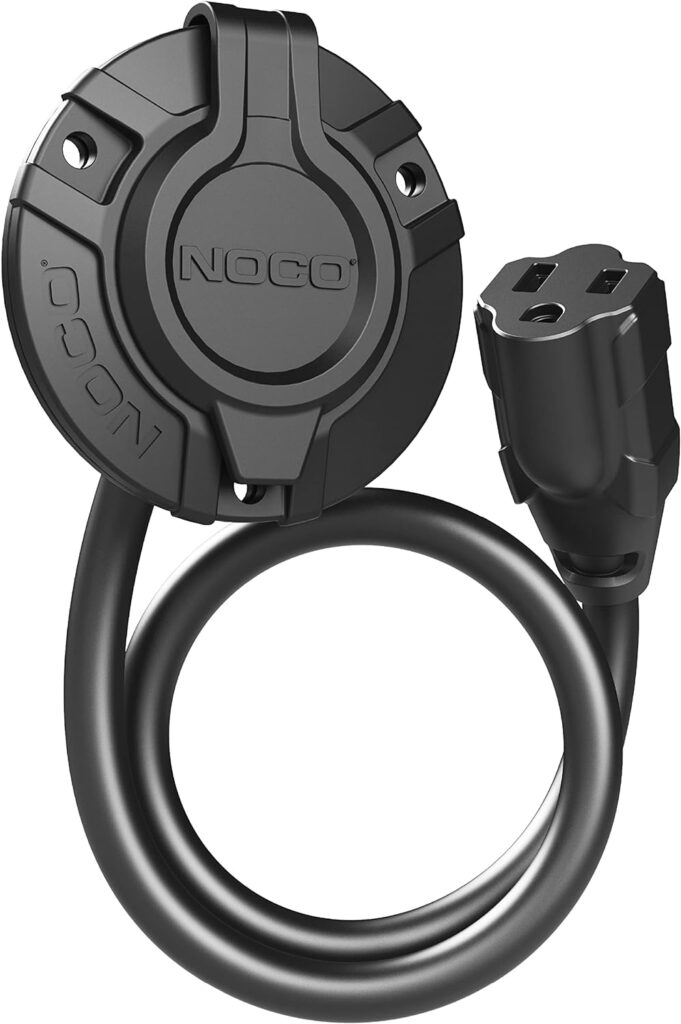

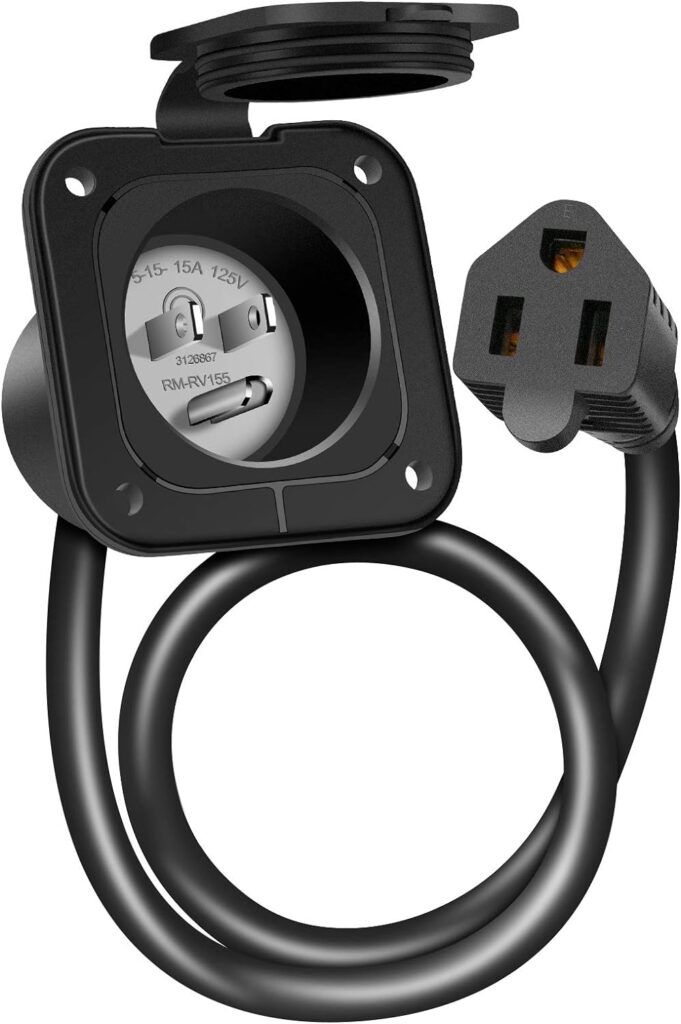

Inlet w/ extension cord
– requires 2″ hole saw
Inlet w/ extension cord
– requires 2″ hole saw
Supplies:
(Items may also be found at your local hardware store)

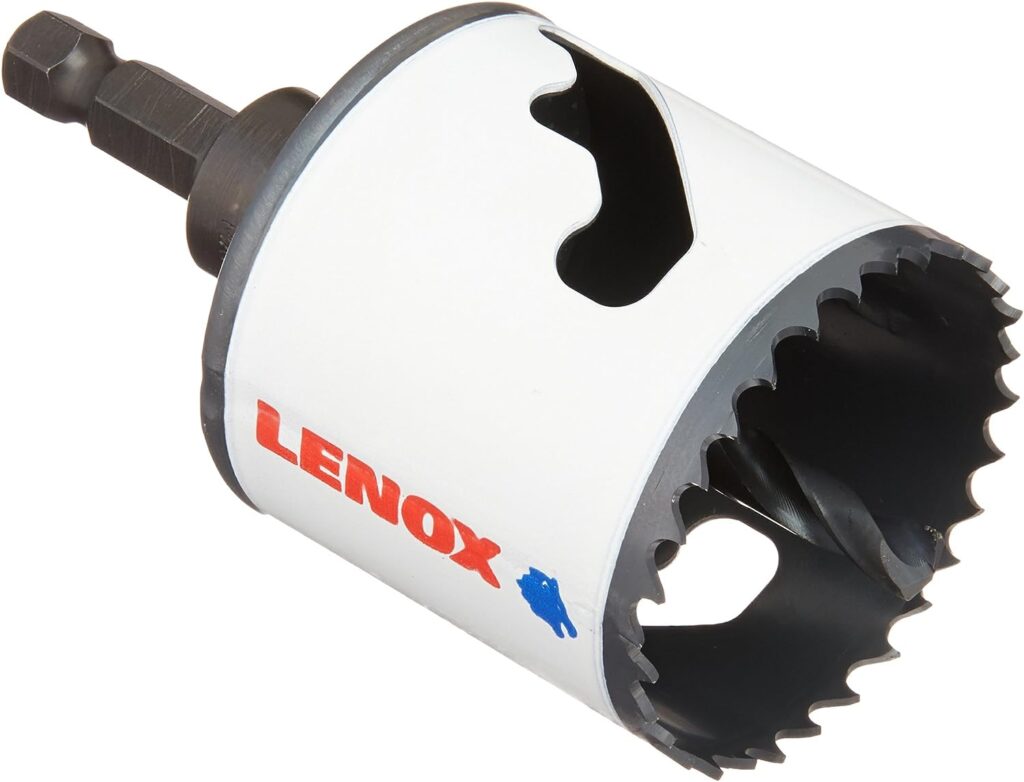

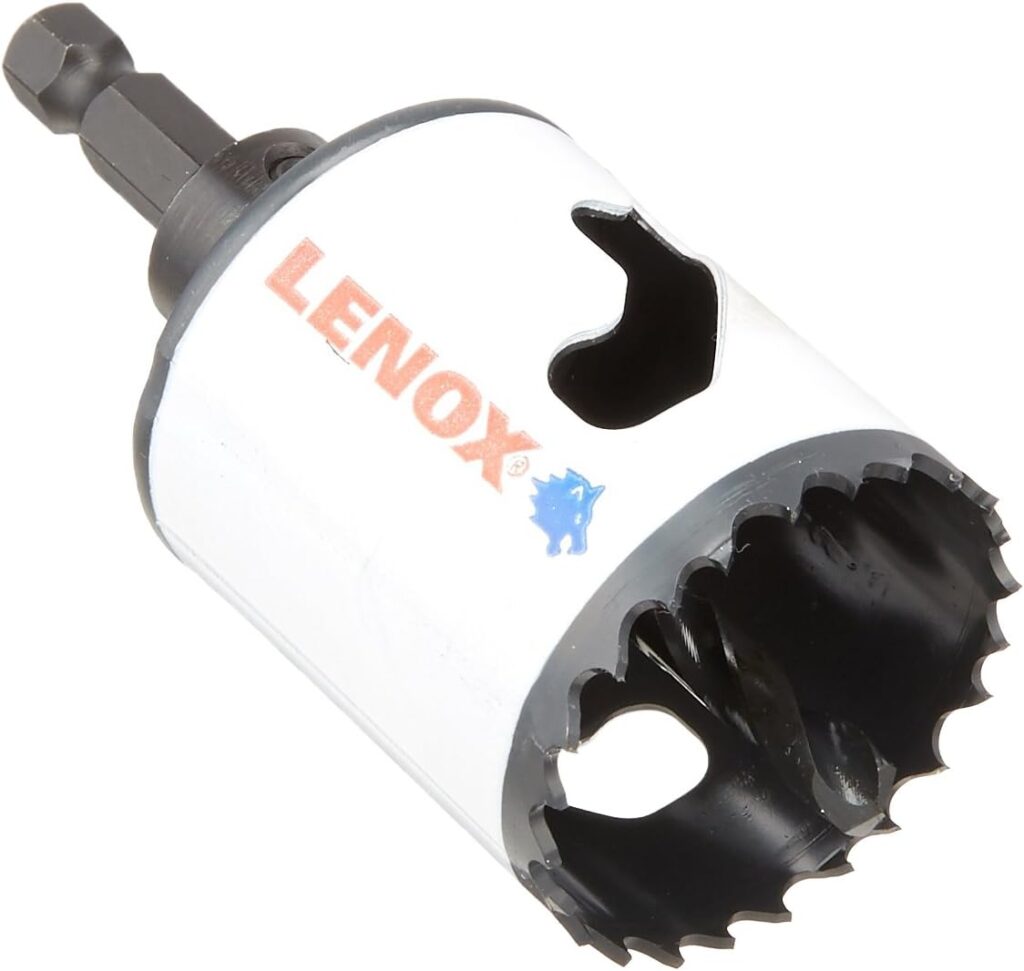

2″ hole saw
1-3/4″ hole saw

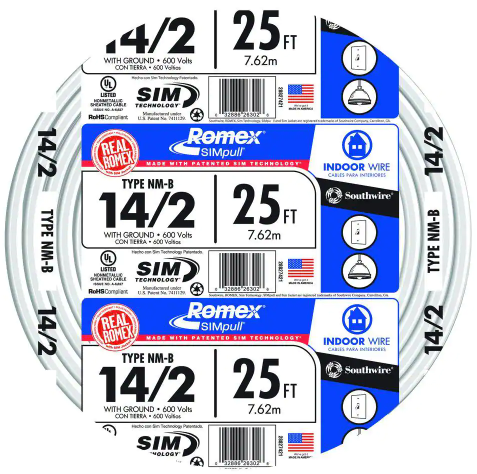

14/2 wire

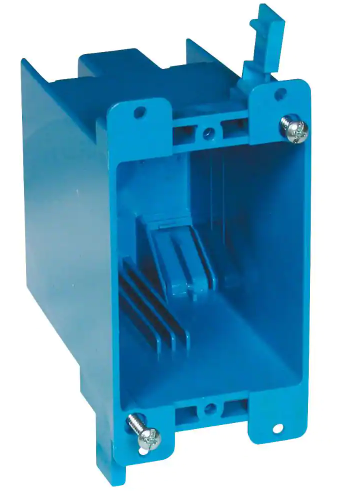

Electrical box – 20 cu. in.

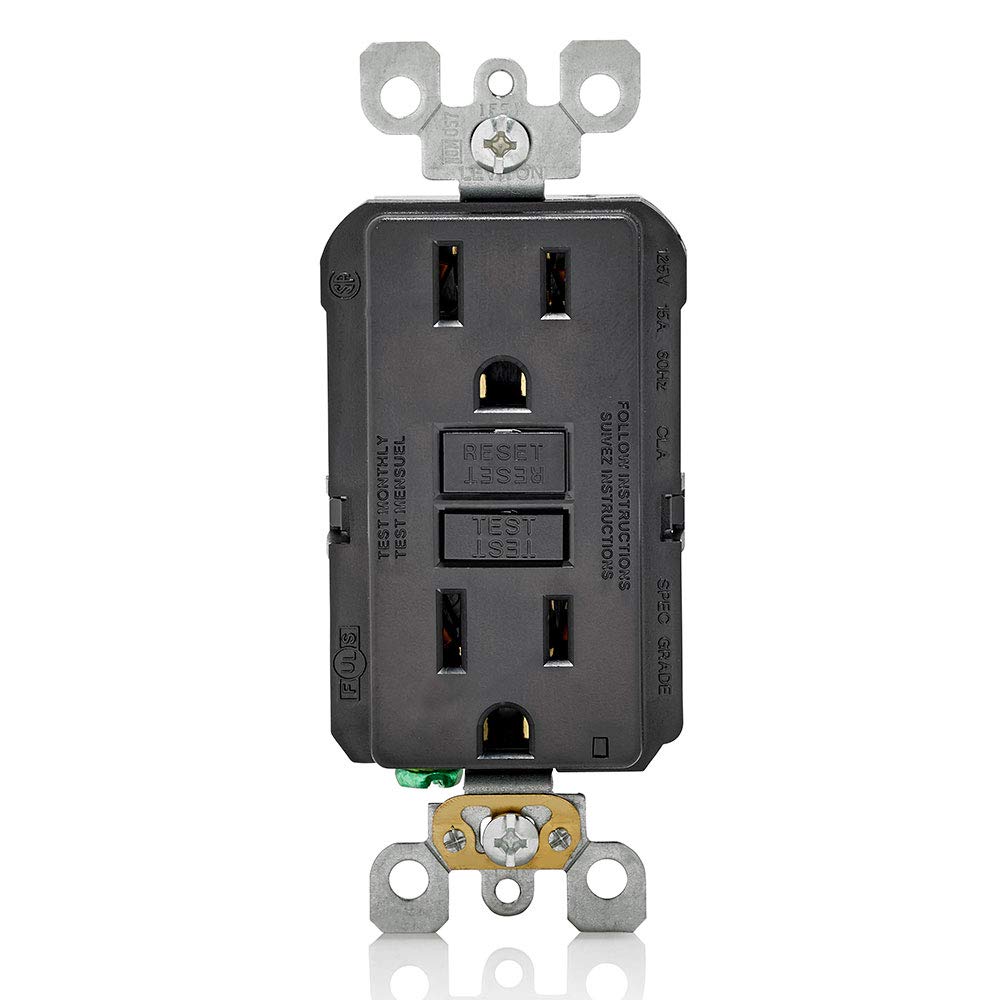

15 amp GFCI outlet

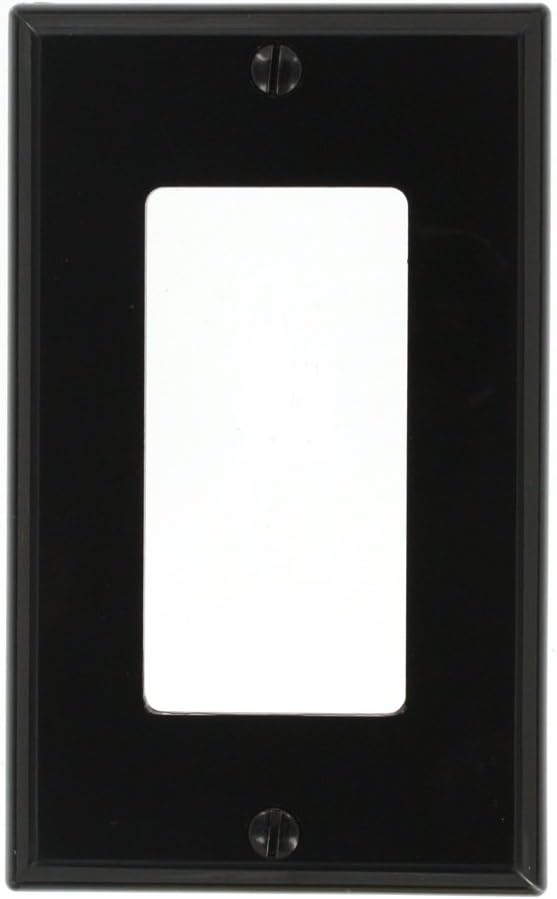

Decora wallplate
Step 1:
Drill the hole (run the drill backwards to make a clean cut)
Step 2:
- Wire the romex to the inlet receptacle.

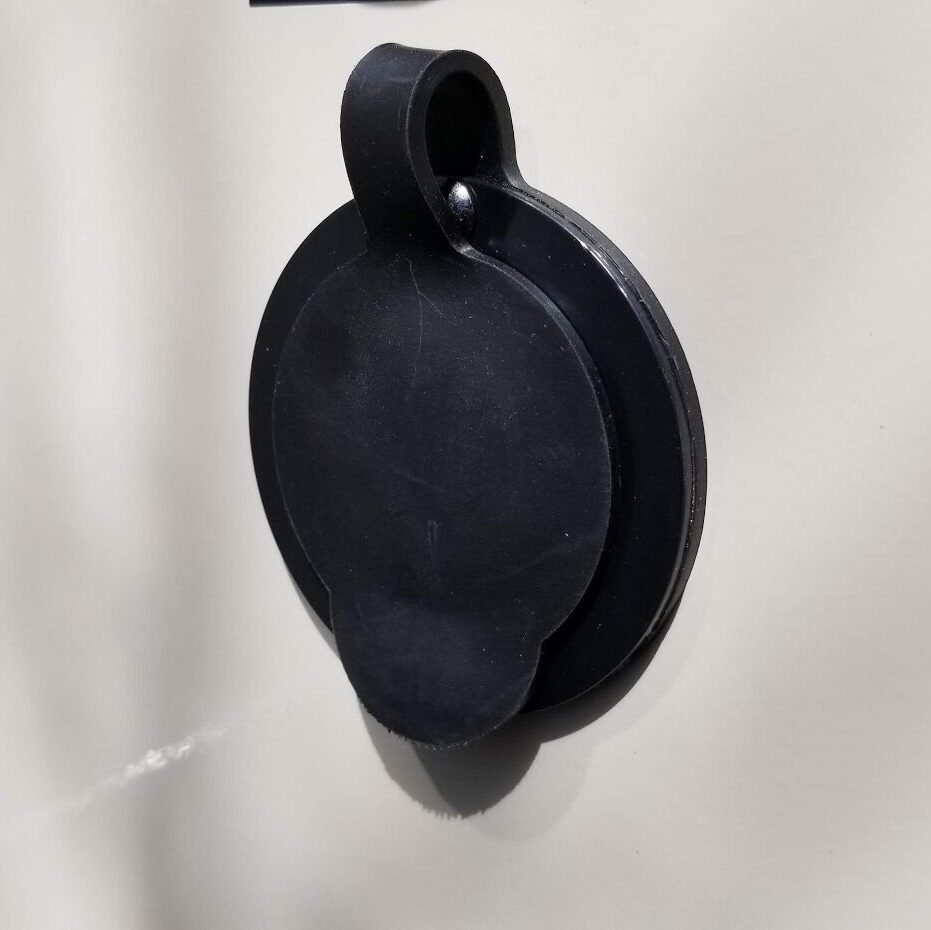

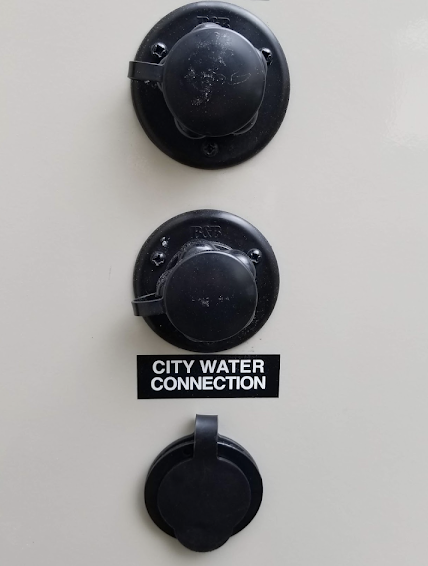

- Install the receptacle into the hole.
Step 3:
- Cut a hole in an interior wall.

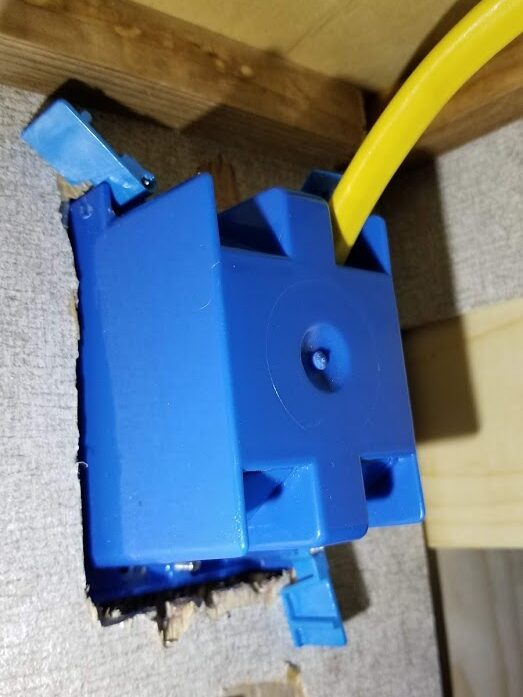

- Install the “old work” electrical box.
- Run the romex to the electrical box.
- Wire the GFCI outlet.
Step 4:
- Plug in an electrical cord to the new power inlet.

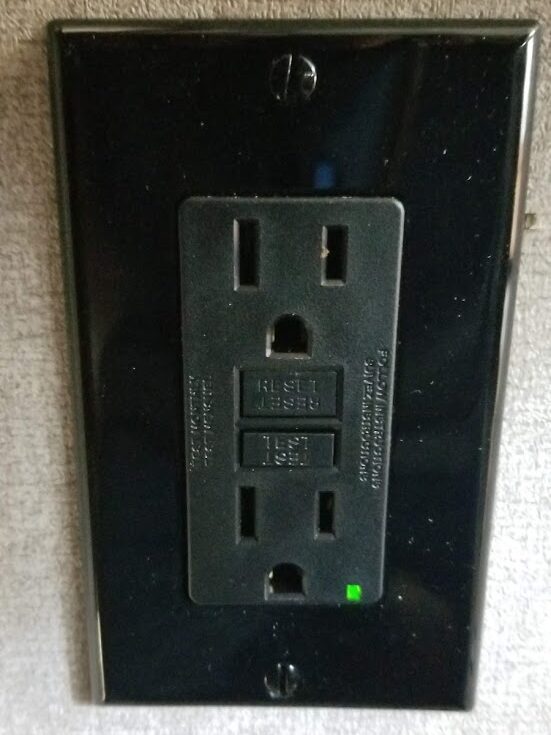

- Verify green GFCI light is on.
Thank you Adam
